Televend Box T42

Vending and coffee machines

Telemetry unit for vending and coffee machines with additional hardware security elements and safe key storage. Works as master in EXE, MDB and CSI protocol and captures all transactions (cash, cashless, free vend, test vend) from any machine on the market.

Generates own DTS/DEX file but it can also read and write DTS/DEX to the machine to change prices or get real time errors.

Has integrated Macjack App, RFID, and Bank Card payments.

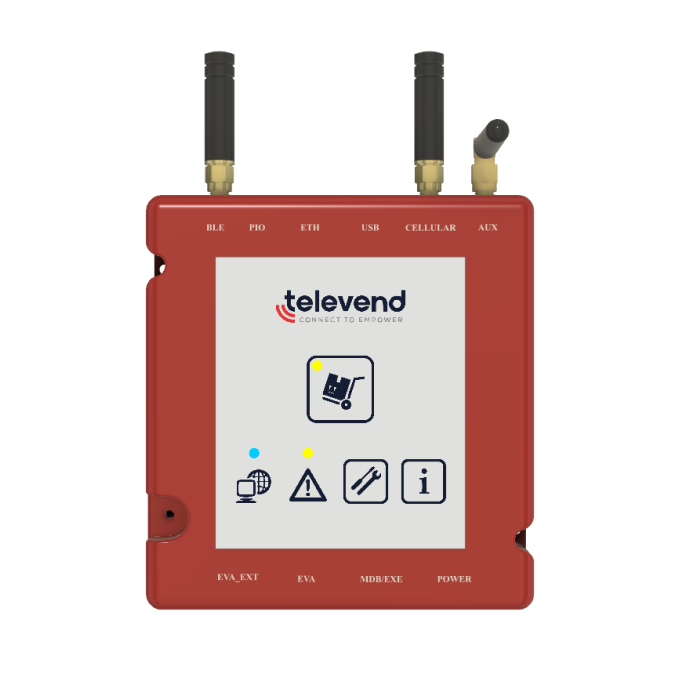

t42p render with antennas

Communication and ports

  • 2G/3G/4G modem
  • Bluetooth
  • Ethernet
  • 2 x USB ports
  • 2 x RS232 serial ports
  • PIO port

Supported protocols

  • MDB
  • EXECUTIVE
  • EVA DTS (DEX and DDCMP)
  • Height: 130 mm
  • Width: 122 mm
  • Depth: 30 mm
  • Weight: 200g
  • Operating Temperature: -20°C to +55°C
  • Humidity: up to 95% RH (non-condensing)
  • Dust and water resistance: IP40
  • Flammability: UL-94 V0
  • Certification: CE, RoHS
  • DC: 15V to 42V DC
  • Maximum voltage (DC): 48V
  • AC: 50/60Hz 18V to 30V RMS
  • Maximum voltages: positive/negative (AC) +48V/-48V

Our hardware portfolio

Looking for more? Check out our other telemetry solutions.

T42P

televend box t42p

Kiddie rides, car wash, laundry, air pumps

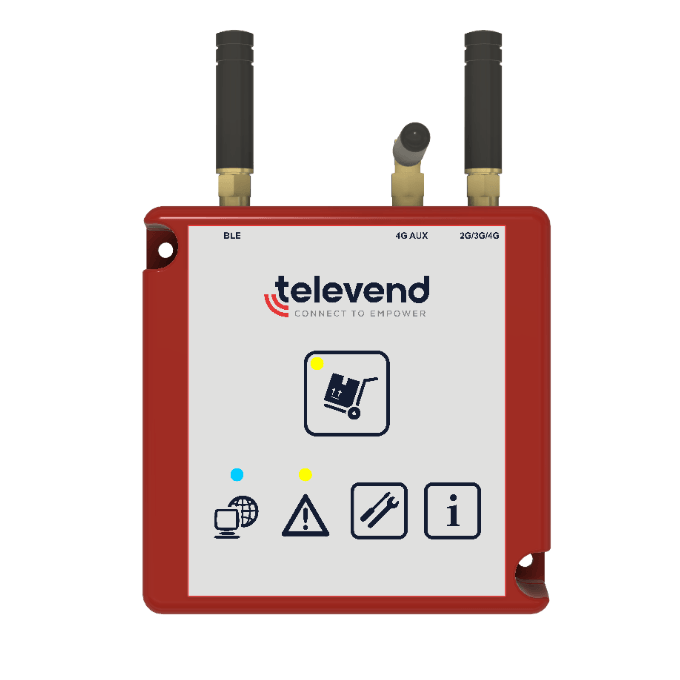

T36

televend box t36

Vending and coffee machines

T42

t42p render with antennas

Vending and coffee machines
